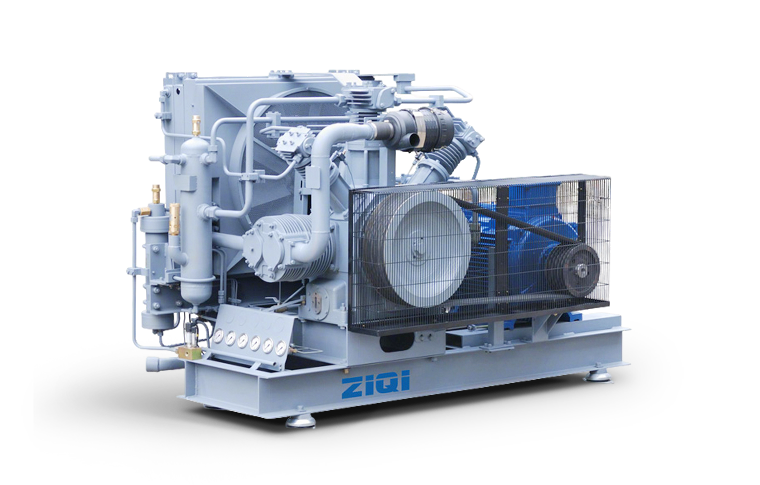

Heavy Duty Industrial Air Booster (30 - 350 Bar)
Engineered for 24/7 continuous operation. Unlike standard compressors, our heavy-duty boosters utilize multi-stage compression to reduce thermal load and ensure extended service life.

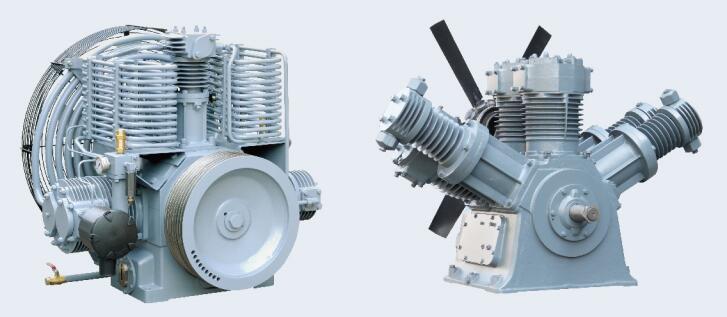

Cylinder:Deep fin design for max heat dissipation
Valves:Premium alloys optimized for varying loads
Efficiency:Multi-stage compression saves energy
Equipped with an active oil pump for forced lubrication, far superior to splash type. Ensures oil reaches every moving part instantly upon startup.
Safety:Real-time pressure monitoring
Protection:Prevents dry friction wear
Purity:High-grade precision oil filtration
Dual cooling system with integrated inter-stage and after-coolers. Main shaft driven fan creates powerful airflow to keep exhaust temperatures low.
PET Bottle Blowing, Laser Cutting, Pipeline Pressure Test, Leakage Testing, Marine Military, Hydropower Stations.
Available inSkid-mounted Basefor easy mobility orSoundproof Enclosurefor noise-sensitive environments.
| Feature | Standard Piston Compressor | ZIQI High Pressure Series |
|---|---|---|
| Lubrication Method | Splash Lubrication (Passive) | Forced Oil Pump (Active) |
| Cooling Efficiency | Standard Finning | Deep Fin Cylinder + Dual Coolers |
| Drainage | Manual | Auto Drainage (Inter-stage) |
| Duty Cycle | Intermittent | Heavy Duty / Continuous |
Customizable solutions based on your specific pressure and flow requirements.
| Parameter Item | Specification Range |
|---|---|
| Working Pressure | 3.0 - 35.0 MPa (30 - 350 bar) |
| Capacity (FAD) | 0.5 - 20 m³/min (Customizable) |
| Motor Power | 7.5 kW - 132 kW |
| Cooling Method | Air Cooling (Standard) / Water Cooling (Optional) |
| Driven Type | Belt Driven / Direct Driven |
| Compression Stages | 2 to 4 Stages |
| Lubrication | Oil Lubricated (Standard) / Oil-Free (Optional) |
| Structure | Skid-mounted Base / Soundproof Enclosure |
* Note: Please contact us for detailed model selection based on your application.
| Model | Max Air Flowing (m3/min) |
Pressure (bar) |
Series | Number of Cylinders |
Power (kW) |
Dimension (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| HQ3-30 | 3 | 30 | 2 | 3 | 37 | 1800*960*1200 | 1000 |
| HQ5-30 | 5 | 30 | 2 | 5 | 55 | 2100*1140*1570 | 1450 |
| HQ8-30 | 8 | 30 | 3 | 6 | 90 | 3100*2000*1900 | 4500 |
| HQ10-30 | 10 | 30 | 3 | 6 | 110 | 3100*2000*1900 | 4650 |
| HQ3-50 | 3 | 50 | 3 | 4 | 45 | 2100*1080*1490 | 1300 |
| HQ4-50 | 4 | 50 | 3 | 4 | 55 | 2100*1080*1490 | 1400 |
| HQ8-50 | 8 | 50 | 3 | 6 | 110 | 3100*2000*1900 | 4650 |
| HQ10-50 | 10 | 50 | 3 | 6 | 132 | 3100*2000*1900 | 4800 |
| HQ1.5-80 | 1.5 | 80 | 3 | 3 | 30 | 1800*1020*1200 | 980 |
| HQ2-80 | 2 | 80 | 3 | 3 | 37 | 1800*1020*1200 | 1040 |
| HQ4-80 | 4 | 80 | 4 | 5 | 55 | 2270*1270*1520 | 1500 |
| HQ1.5-100 | 1.5 | 100 | 4 | 4 | 30 | 1800*1000*1200 | 1180 |
| HQ2-100 | 2 | 100 | 4 | 4 | 37 | 1800*1000*1200 | 1200 |
| HQ3-100 | 3 | 100 | 4 | 5 | 55 | 2270*1270*1520 | 1500 |
| HQ4.5-100 | 4.5 | 100 | 4 | 5 | 75 | 2270*1270*1520 | 1620 |
| HQ8-100 | 8 | 100 | 4 | 6 | 132 | 3100*2000*1900 | 4800 |
| HQ10-100 | 10 | 100 | 4 | 6 | 160 | 3100*2000*1900 | 5000 |
| HQ1.5-150 | 1.5 | 150 | 4 | 4 | 30 | 1800*1000*1200 | 1180 |
| HQ2-150 | 2 | 150 | 4 | 4 | 37 | 1800*1000*1200 | 1200 |
| HQ3-150 | 3 | 150 | 4 | 5 | 55 | 2270*1270*1520 | 1550 |
| HQ5-150 | 5 | 150 | 4 | 6 | 90 | 3100*2000*1900 | 4500 |
| HQ8-150 | 8 | 150 | 4 | 6 | 132 | 3100*2000*1900 | 4800 |
| HQ1.5-250 | 1.5 | 250 | 4 | 4 | 37 | 1800*1000*1200 | 1200 |
| HQ2-250 | 2 | 250 | 4 | 4 | 37 | 2120*1275*1500 | 1450 |
| HQ3-250 | 3 | 250 | 4 | 5 | 55 | 2270*1270*1520 | 1550 |
| HQ5-250 | 5 | 250 | 5 | 6 | 110 | 3100*2000*1900 | 4650 |
| HQ8-250 | 8 | 250 | 5 | 6 | 160 | 3100*2000*1900 | 5000 |
| HQ1.5-350 | 1.5 | 350 | 5 | 4 | 37 | 1800*1000*1200 | 1200 |
| HQ2-350 | 2 | 350 | 5 | 5 | 45 | 2120*1275*1500 | 1500 |
| HQ2.5-350 | 2.5 | 350 | 5 | 5 | 55 | 2120*1275*1500 | 1550 |
| HQ5-350 | 5 | 350 | 5 | 6 | 110 | 3100*2000*1900 | 4650 |
| HQ7-350 | 7 | 350 | 5 | 6 | 160 | 3100*2000*1900 | 5000 |
| HQ2-400 | 2 | 400 | 5 | 5 | 45 | 2120*1275*1500 | 1600 |
| HQ6-400 | 6 | 400 | 5 | 6 | 132 | 3100*2000*1900 | 4580 |
